TECHNOLOGY

- We have a great history but we'd rather look to the future

WE MAKE THINGS WORK

Backer has the largest technology portfolio in the industry. Continued investments in new technologies are part of our success. Process and product development are supported by our significant investments in testing resources and labs. Our business grows through partnerships with our customers that utilize our resources in developing unique and competitive solutions.

energy regulator control

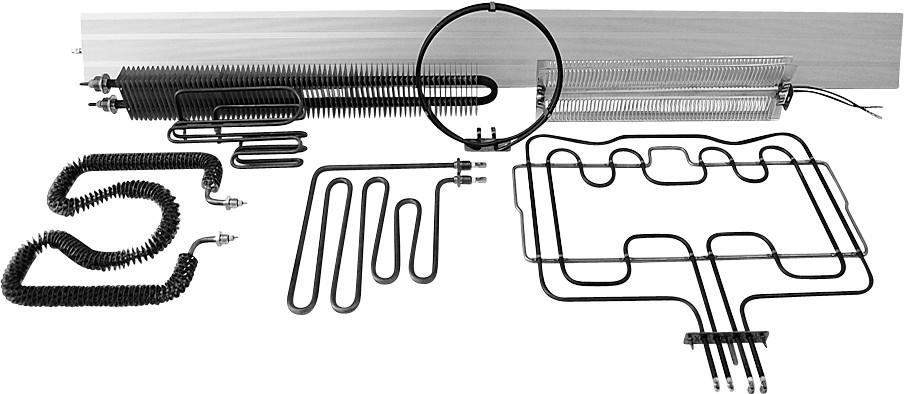

TUBULAR HEATING ELEMENTS

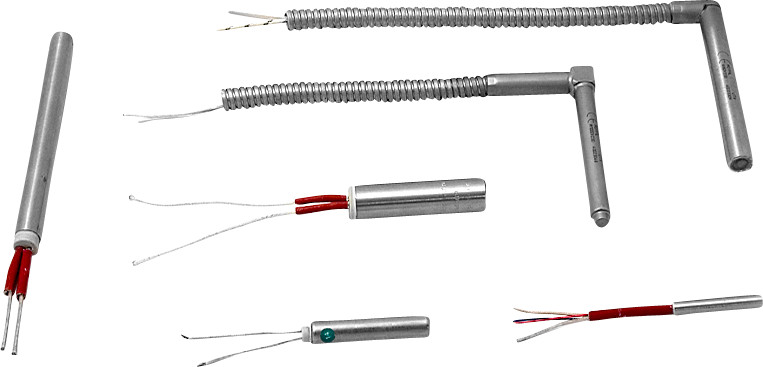

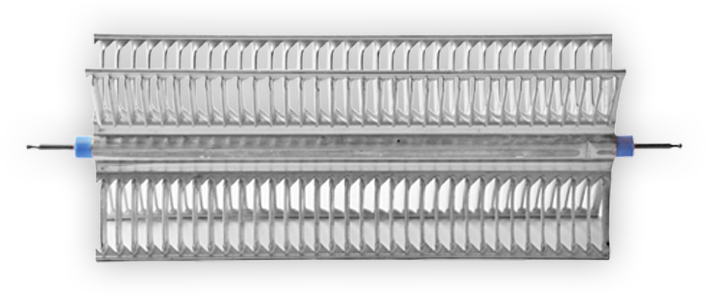

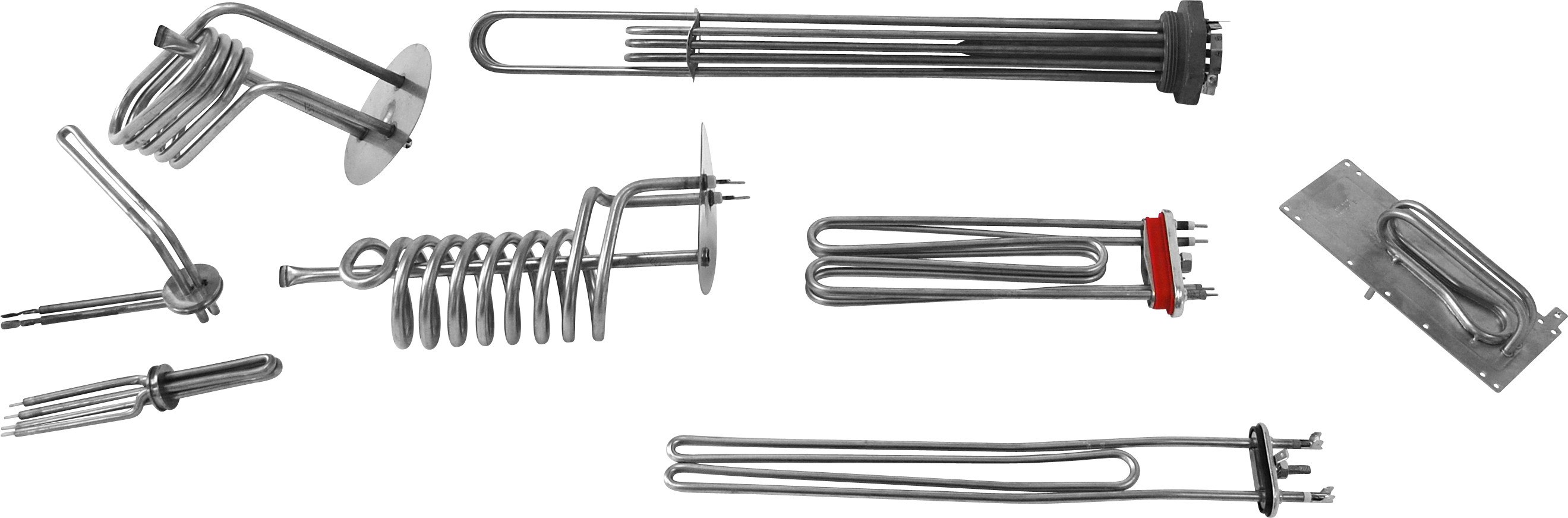

Traditional elements in diameters 6.0 to 21.0 mm. Lengths from 140 to 7200 mm. Material AISI 304, 321, 316L, Incoloy 800, 825. Temperatures up to 940°C. Cartridge heaters, diameter 3.3-20.0 mm. Aluminum sections for convection and radiation. Vulcanized tubular heating elements.

Product examples

energy regulator control

PRINTED ELEMENTS

Thick film elements in AISI 304, temperature max. 500°C. Foil elements in PVC, max. 70°C, polyester, max. 110°C, polyimide, max. 230°C, silicone, max. 230°C, micanite, max. 400°C. Custom connections. .

Product examples

energy regulator control

SUPPORTED WIRE ELEMENTS

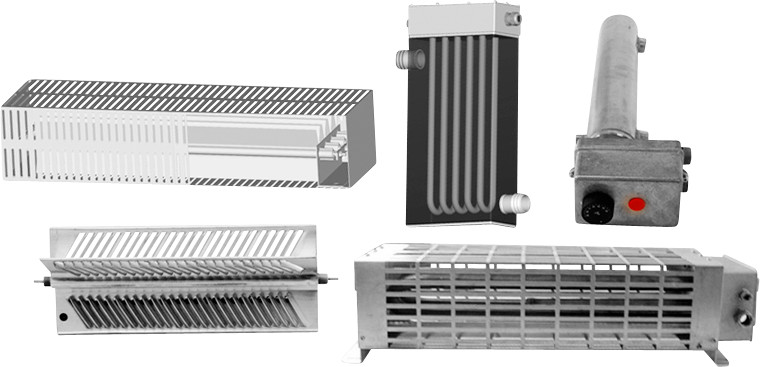

Micanite elements, ceramic elements, enameled elements/ resistors. Surface power 3-4 W/cm2 at max. 350°C. Max. 7 W/cm2 with good thermal conductivity and a good fit. Operating temperature max. 700°C. Aluminium housed brake resistors.

Product examples

energy regulator control

Product examples

energy regulator control

PTC ELEMENTS

Self-regulating function. Adjustment of power via air flow. Connection voltage 110-240 V and 12-36 V. Curie point 50°C-320°C.

Product examples

energy regulator control

HEATING CABLES

Self-regulated with Thermoplastic or Flourpolymer up to 300°C and 120W/m. Parallell resistive constant power with Silicone or Flourpolymer up to 485°C 150W/m. High temperature with steel sheet up to 1000°C 250W/m. Long line with silicone for <20km.

Product examples

energy regulator control

SPECIAL

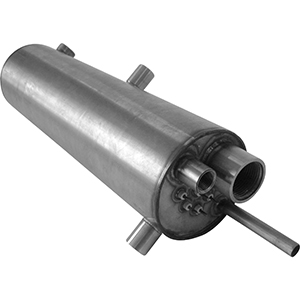

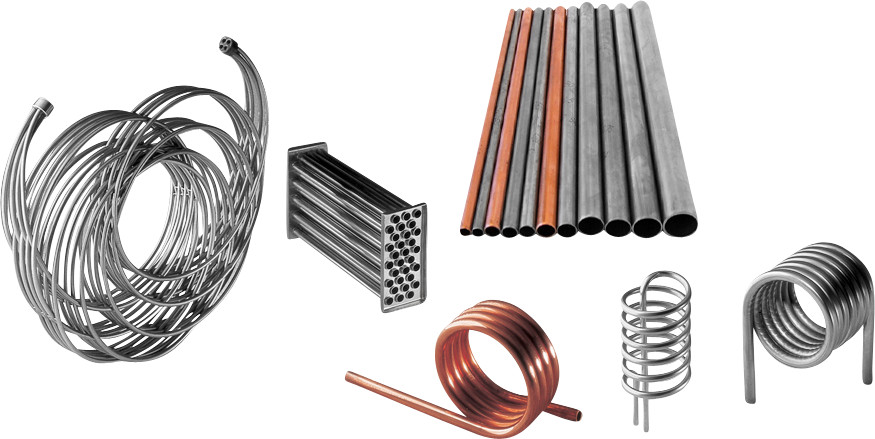

Components for element production, heat exchangers, heat treatment, furnace brazing, stainless pipes.

Product examples

energy regulator control

SUSPENDED WIRE ELEMENTS

Rapid heating, thermostat adjustment and overheat protection. Band heaters max 700°C with 4,5W/cm2.

Product examples

energy regulator control

IR AND HALOGEN ELEMENTS

Material: Ceramic, quartz glass, quartz glass with halogen. Temperature 150-2400°C depending on the material.

Product examples

energy regulator control

HEAT PUMP TECHNOLOGY

Our most energy efficient heating technology. Air-to-air or air-to-water heating. Temperatures up to 70°C. Voltage 230-400V

Product examples
